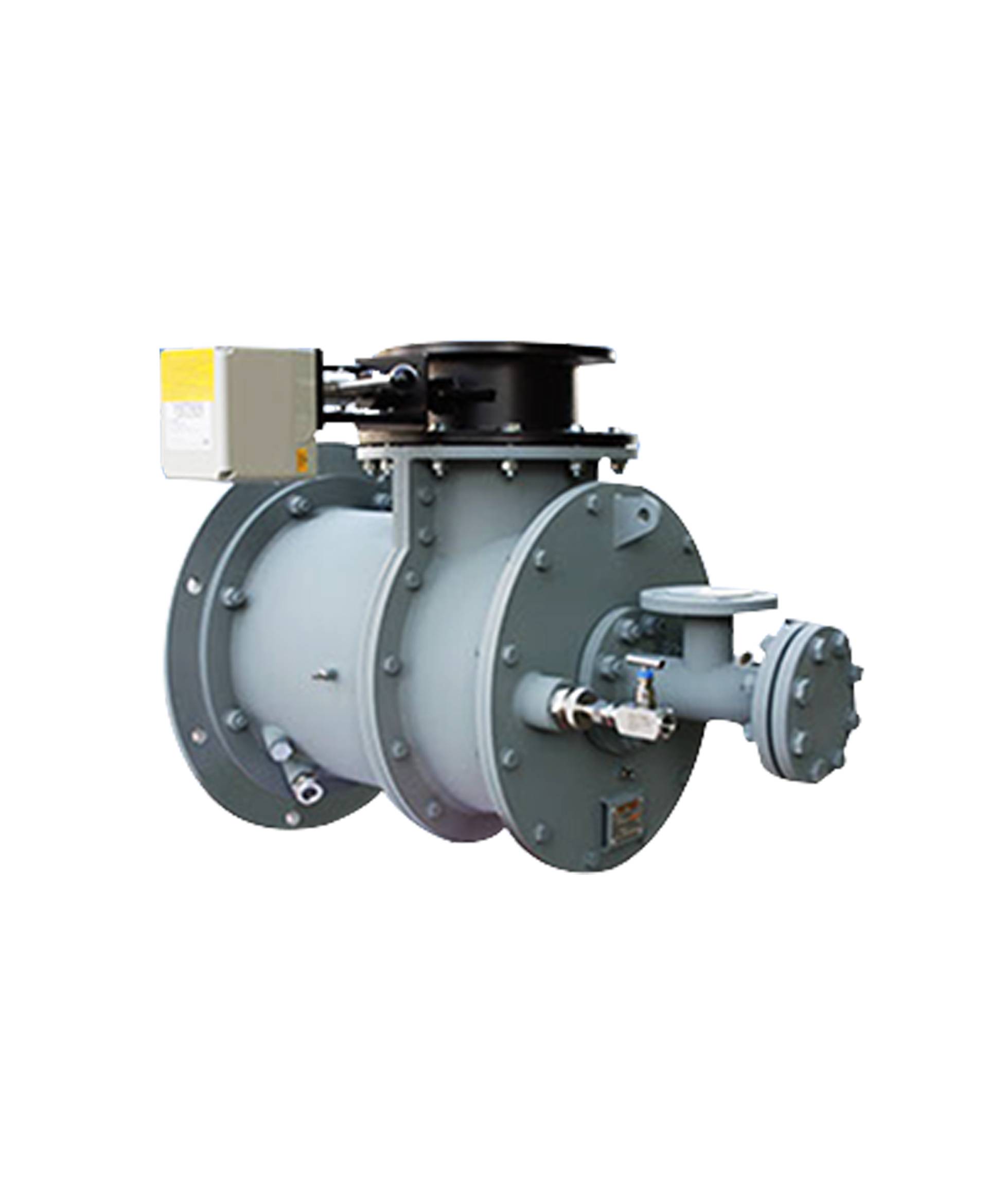

Oxyflame series burners are ultra-low flame temperature, low carbon, low nitrogen and flame-less burners. They use fuel and oxygen to support combustion and have adjustable percentage switching between flame and flameless. They are used in metal and non-metal smelting, rever-beratory furnace, rotary furnace and other high-temperature applications. They are suitable for furnaces and their molten pools with temperatures up to 1650 °C ~2200 °C; It can operate stably

   • Oxygen, methane, propane, liquefied gas, mixed gas, hydrogen, diesel oil can be used as fuel, and stable operation can be achieved by changing the central gun;
   • Combined control and monitoring of combustion safety control module and PLC are adopted. It can upload DCS system and realize data monitoring of Internet of things;
   • High precision flow ratio regulation is adopted, and the temperature control is the most advan-ced double cross limit range combined with a set of systems, which can save energy by 5%~8% compared with the same type of products;
   • Compactdsiginteatedmode switchi etating valve, and quick release structure piping is adopted for connecting parts. Convenient installation, commissioning and maintenance;
   • The length of the fire protection tube of the burner can be selected in various specifications, and the fire-resistant brick can be perfectly combined with the furnace.;
   • The power model of single burner is 0.5~3mw. If you need more power, you can contact dydtec for customization. More than 70% flameless mode is applicable to process environment above 780 °C
