D-Type Watertube Boiler
D-Type Watertube Boiler Share
Starting Price ฿56,500,000
• Steam, temperatures to 1,050°F
• 10,000 to 500,000 lb/hr
• Natural Gas, #2 and #6 oil, refinery fuels, alternative fuels, combination
• Design pressure up to 1,800 psig
• Available to less than 5ppm NOx, Ultra-Low CO

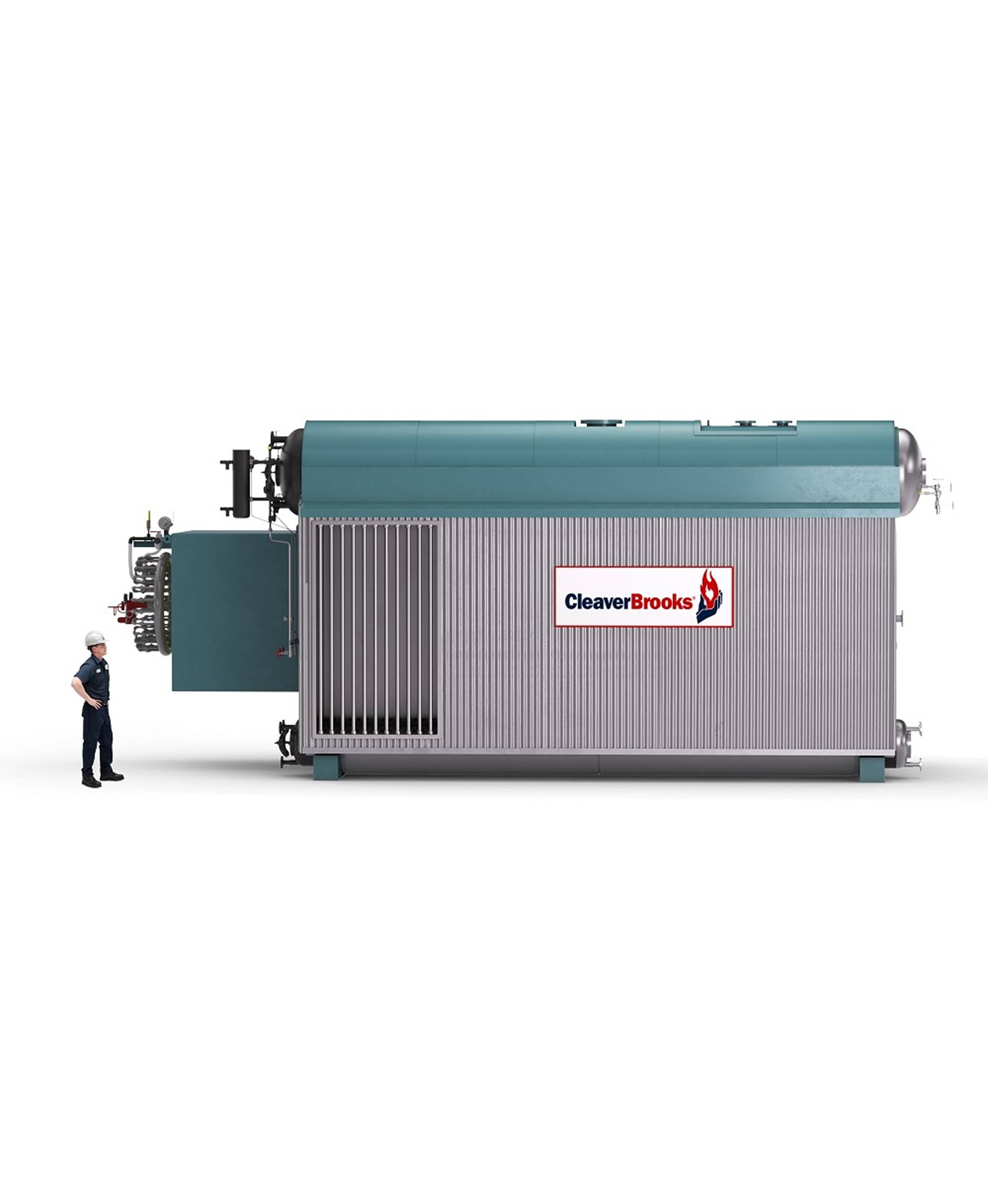

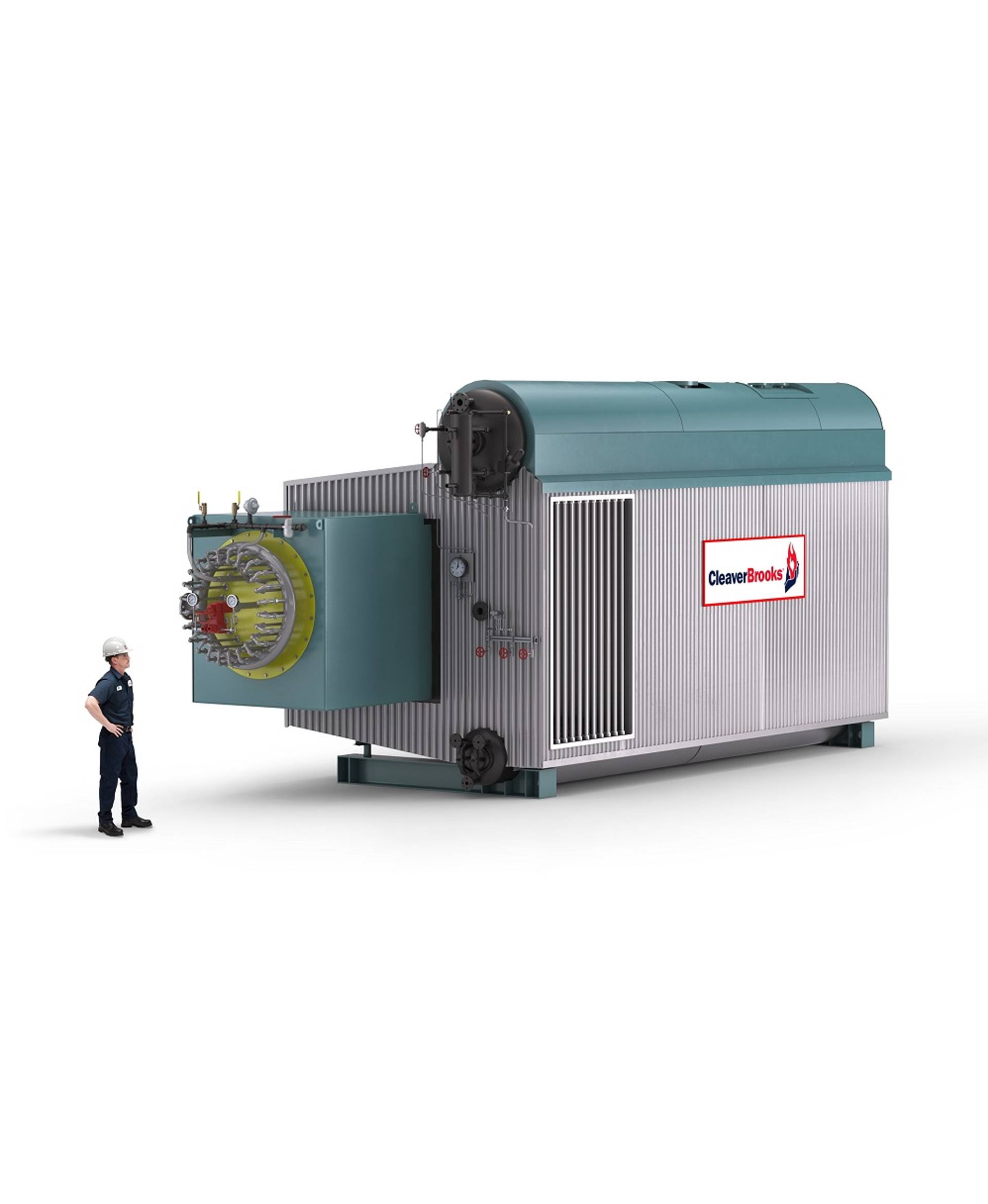

The Cleaver-Brooks Nebraska D-type industrial watertube boiler provides up to 1,050°F superheated steam in the lower-maintenance D configuration. 

IWT boilers can fire renewable natural gas, biogas and hydrogen. They achieve <2 ppm NOx with an ultra-low NOx burner and SCR equipment, and options are available to increase boiler efficiency by 5% on average.
More picture
D-Type Watertube Boiler
D-Type Watertube Boiler
D-Type Watertube Boiler
Category : Industrial Watertube Boilers

Tags :

D-Type Watertube Boiler

     • Furnace construction utilizes a welded-membrane wall design.
     • Convective and interstage superheaters.
     • Large, water-cooled, gas-tight furnace areas.
     • Boiler wall constructions are 100% water-cooled and refractory-free.
     • Only single-source supplier for integrated boiler, burner, and control solutions.
     • Radiant superheater designs are available.
     • Can accommodate selective catalytic reduction (SCR) and CO catalyst.

        The D-type is a 100% membrane water-cooled furnace, reducing costly, time-consuming, annual maintenance. The front and rear walls are welded and refractory-free, as well as the burner throat, when integrated with our Natcom® burner. D-type boilers can be customized to provide superheated steam. We offer both single- and dual-stage integral superheater systems with optional temperature control over turndown.
